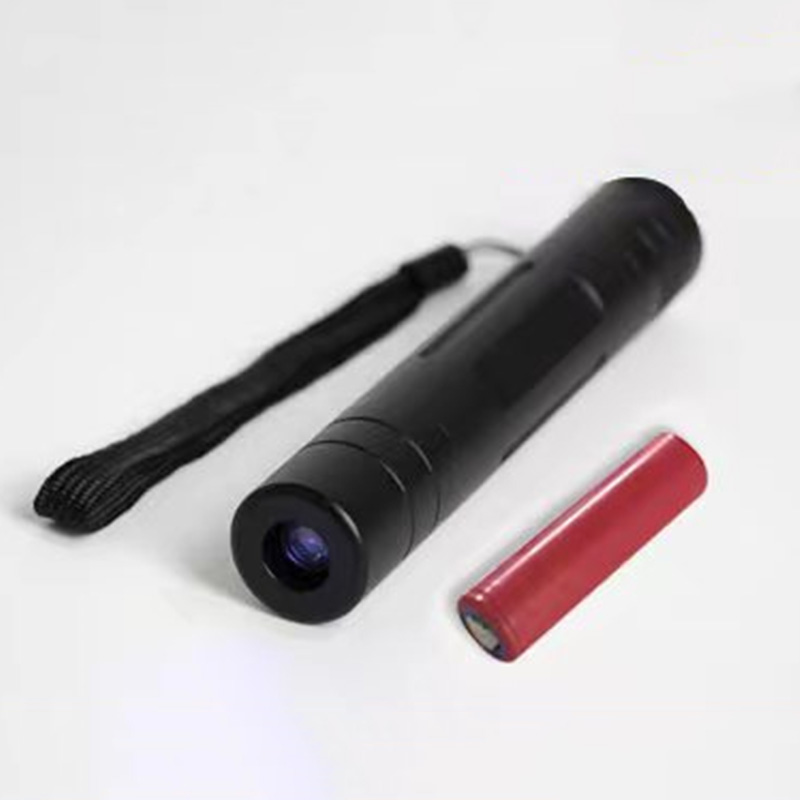

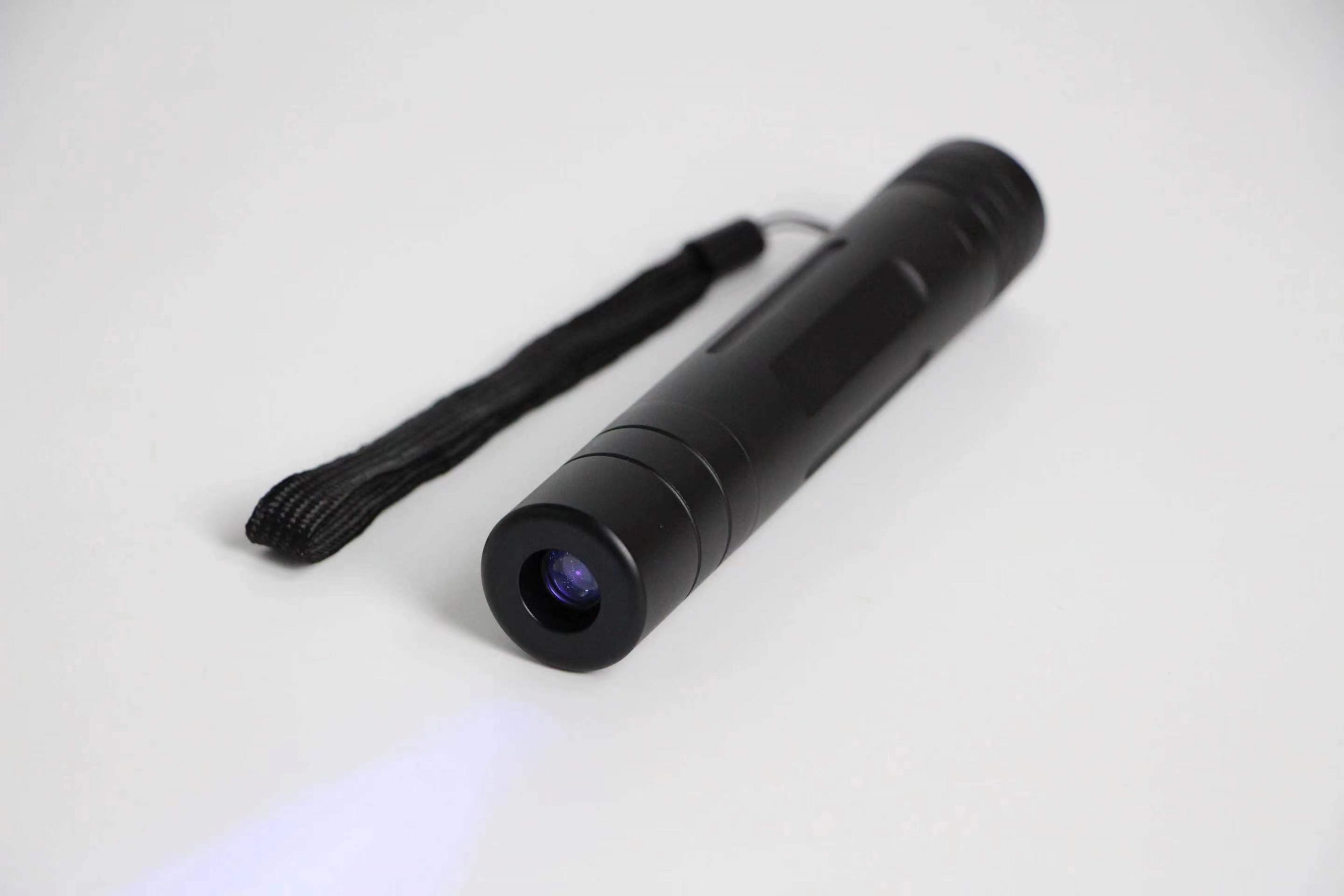

Handheld UV LED Spot Curing Lamp FL01

FLASHLIGHT FL-01

Handheld UV LED Spot Curing Lamp High power [MAX18w/cm^2]
LED BeadsNICHIA
SVC ( Korea SVC)
Wavelength365/385/395/405nm
Lifespan of LED20000H
BatteryRechargeable 18650
high power Li battery
Size26(ø)x 130mm
UV intensityMAX18w/cm^2
Lens diameter2/3/4/5/6/8/10..
Drive modeHigh power mode
Battery working time≥3H
Weight160g without battery
ChargerCharge the battery full with 4.5hours
UsageFor curing UV glue,etc

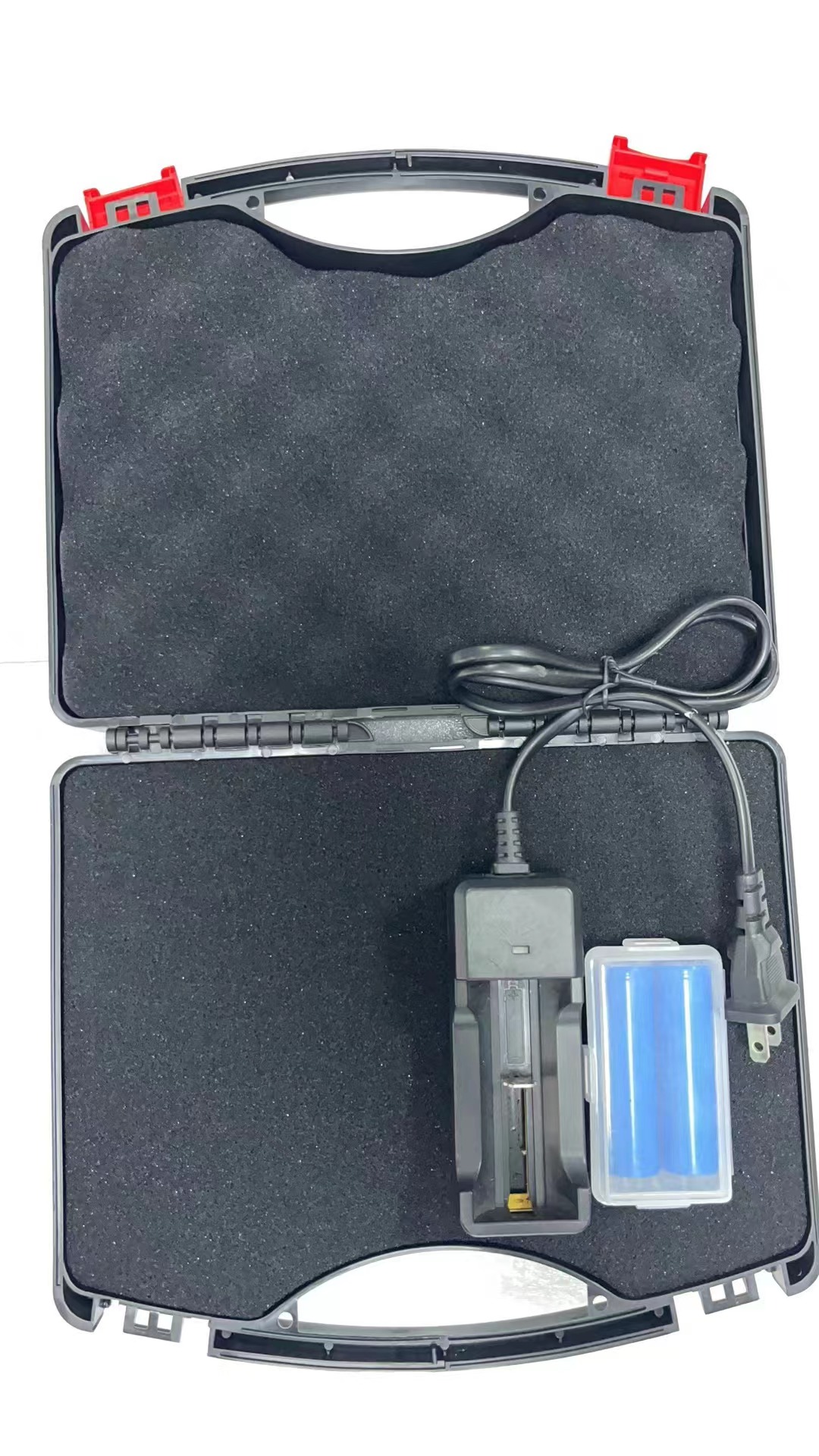

The product includes

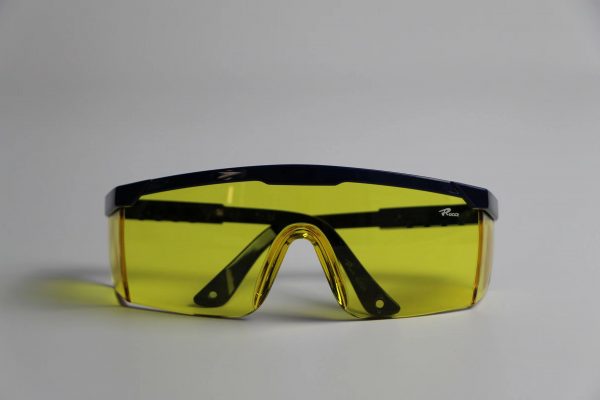

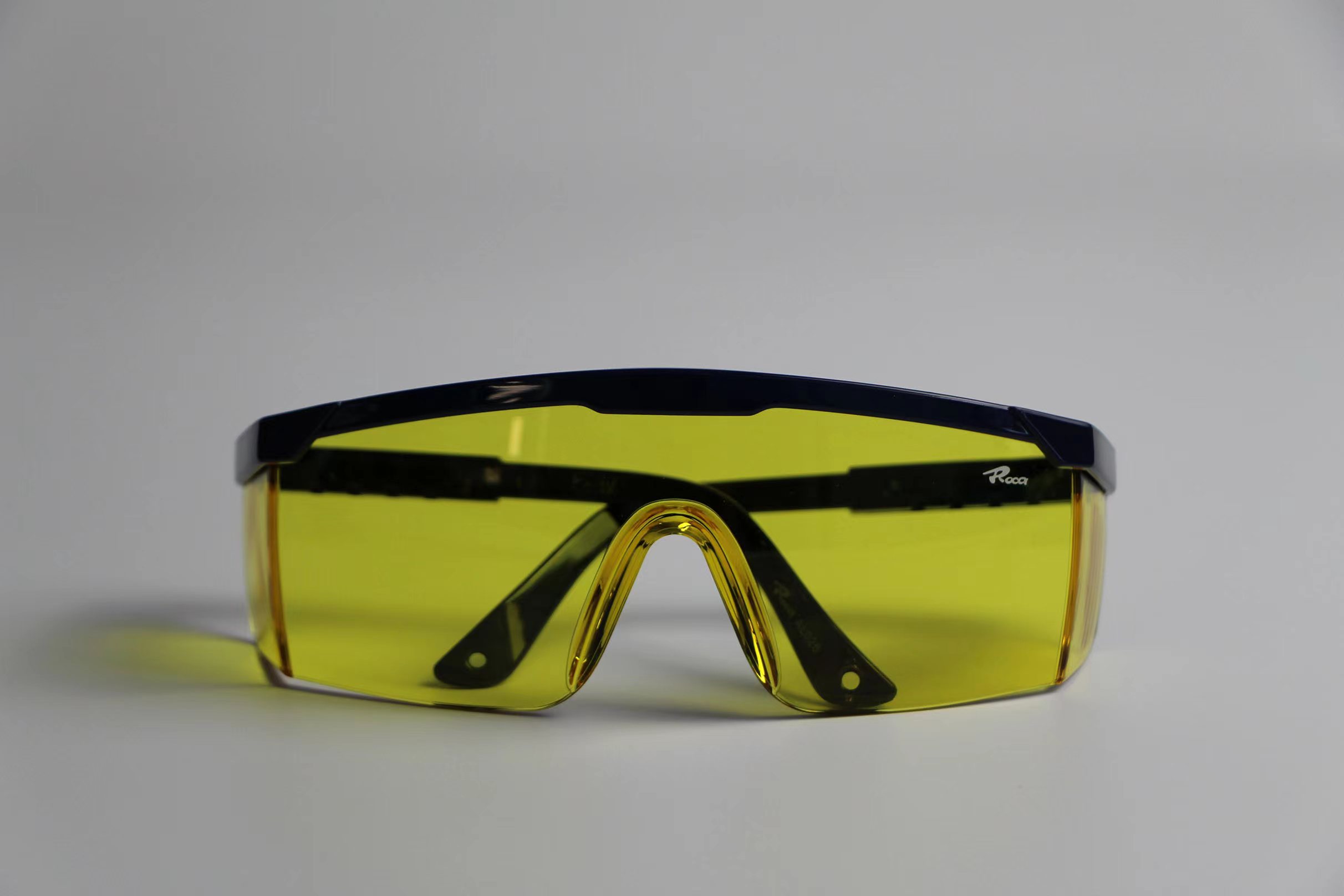

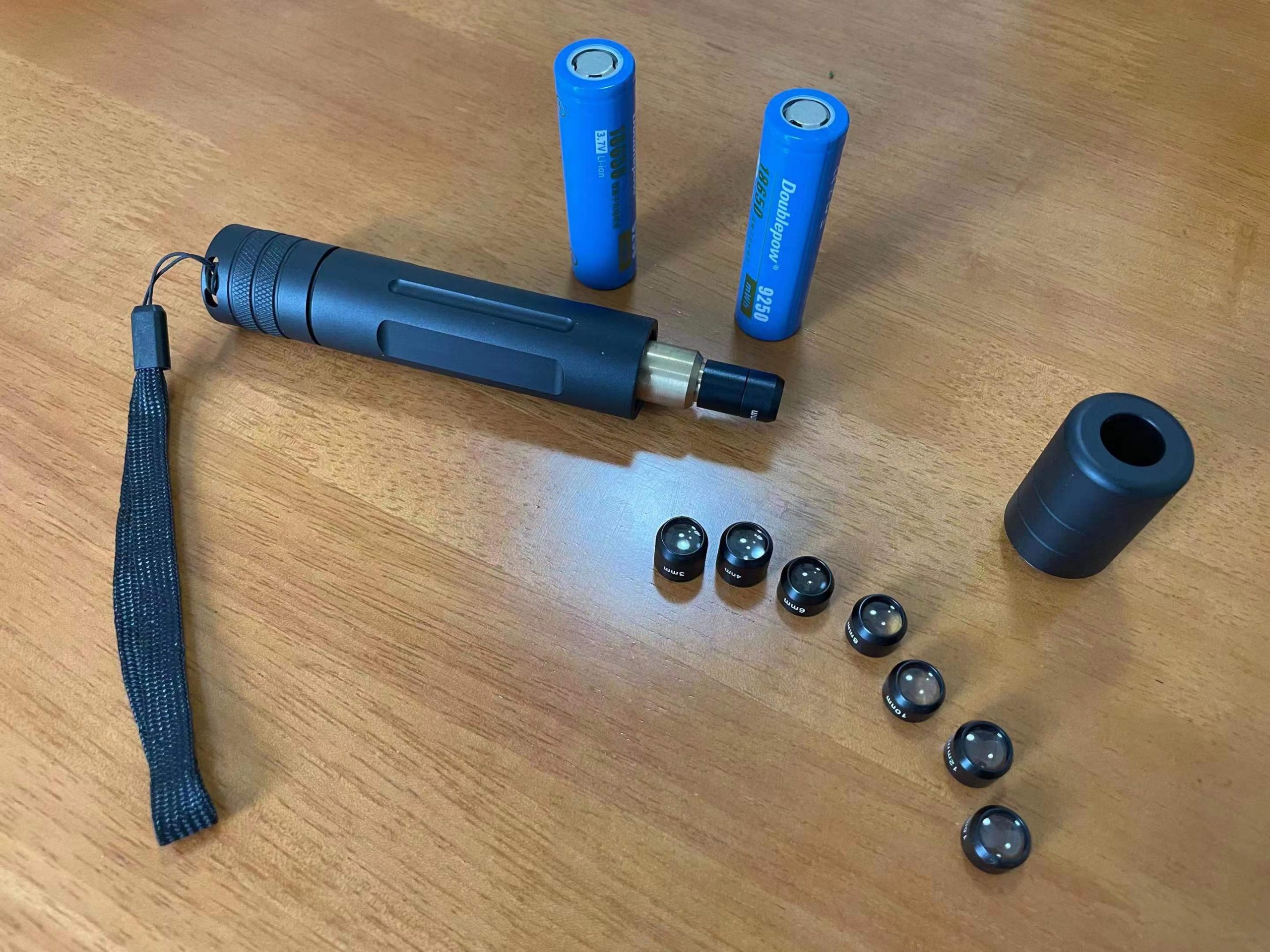

packaging box * 1 flashlight * 1 rechargeable batteries * 2 spot lens * 1 glasses * 1 rechargeable battery charger * 1

Lens diameter

model

spot size

Use Distance

Optical power( mw/cm2)

LD02

2

8mm

18000

LD03

3

10mm

13000

LD04

4

14mm

8500

LD05

5

16mm

7280

LD06

6

17mm

5980

LD08

8

27mm

2340

LD10

10

25mm

1820

LD12

12

25mm

1040

LD15

15

38mm

650

LD15S

3*15

11mm

1700

LD20S

5*20

17mm

860

LD006SV

6

5mm

4000

LD008SV

8

14mm

2000

LD010SV

10

12mm

1100

You can also choose our powered DC version
