uv led spot curing system 4heads/8heads/12heads or customized SPNSC4

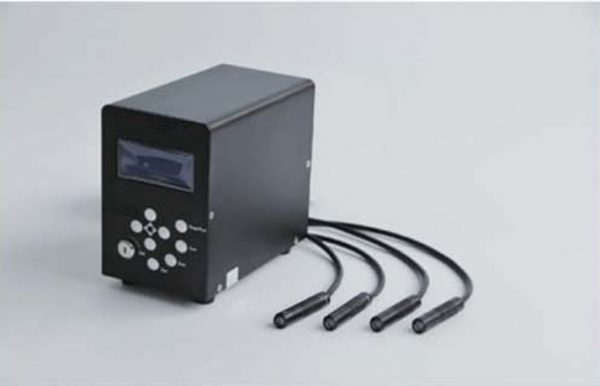

The UV spot curing equipment is a high-intensity, cool-operation LED spotlight curing system widely used in benchtop and automated production lines. The system includes a long-life light guide and supports up to four independently operating light guides with a variety of lens types. the unit features easy to use exposure time controls, foot pedal activation and a built-in power supply, which eliminates the need for an external power adaptor.

Main features

· Multi – channel controler to make operation efficiency · Multiple LED heads can be controled individually or simultaneously · Built – in power , reaching the smalest controler size in the industry · Manual 、 Automatic 、 Advanced modes to be chosen · Variety of lenses are available , with different intensities · Variety of head sizes to meet dfferent environments

More information

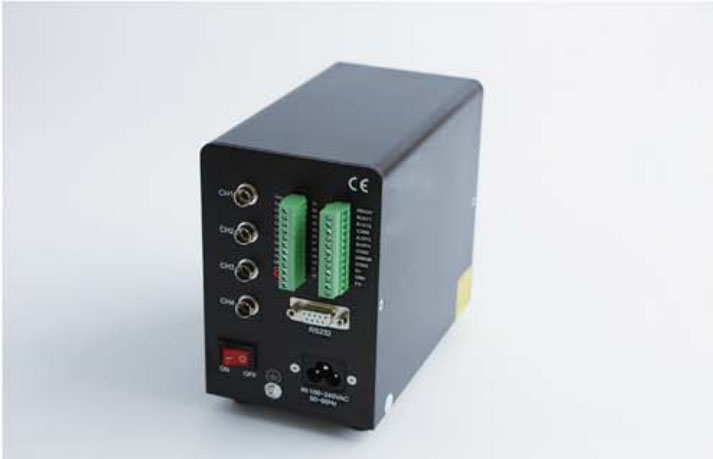

· Signal control terminal is made in Japan , safer and more stable · MCU , PLC , PC and other external can access the seting and output · LED head alarm function if any abnormality happens · Special heat dissipation structure and temperature sensor makes irradiation accuracy floating within only +-3%( when output is 80%) · The interface key makes easy management and prevents arbitrary modification · Multiple step and pulse modes can be set to inhibit the hardening deformation · Record the accumulated lighting times of each LED head to remind the replacement · Fuly aluminum case to avoid dust and rust

LED HEAD

Main fatures

· The highest output power 18W/ cm . can reach rank 1 in industry by using aspherical lens · Our aspherical lens can make the spot uniformity optimal · lrradiation spot can be a variety of choices , numbers of choice ranked first in industry Spot shape and size from standard 2/3/4/5/6/7/8/10/12/15 to special linear and vertical · The core materials of LED HEAD are all made of world – famous brands , such as NICHIA LED , Dow Corning , HOYA quartz lens . · We use imported bending resistant cable , it can be made of Japanese solar robot to0, according to customers (1,000w bending under R30mm). · Standard connection cable is 2M, special can be customized 5M or longer · LED HEAD with fan series can be made according to customer · LED HEAD life up to 20,000 hours

LED HEAD specification

Types of Light spot

standard round light spot
standard round light spot
special vertical light spot
special vertical light spot
special linear light spot
special linear light spot

Specification of head lens (365nm)

Specification of head lens (365nm)

Specification of head lens (385/395/405/450nm)

Specification of head lens (385 395 405 450nm)

Lens curve distribution


uv led spot curing system Touch Screen 8ch A1

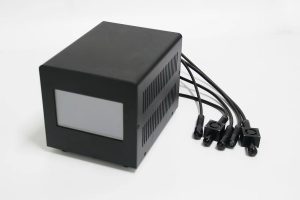

You can also choose our Touch Screen uv led spot curing system 8CH
